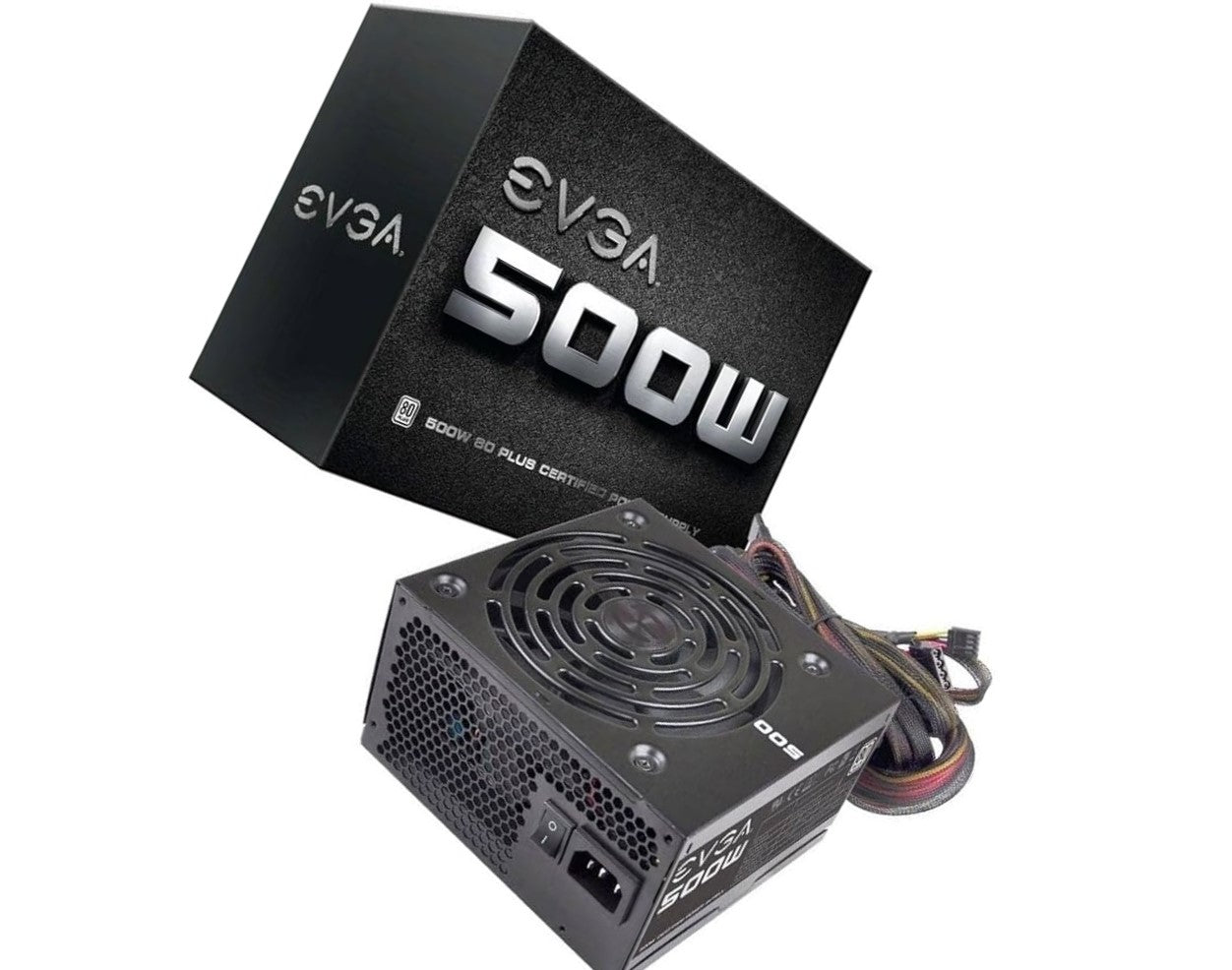

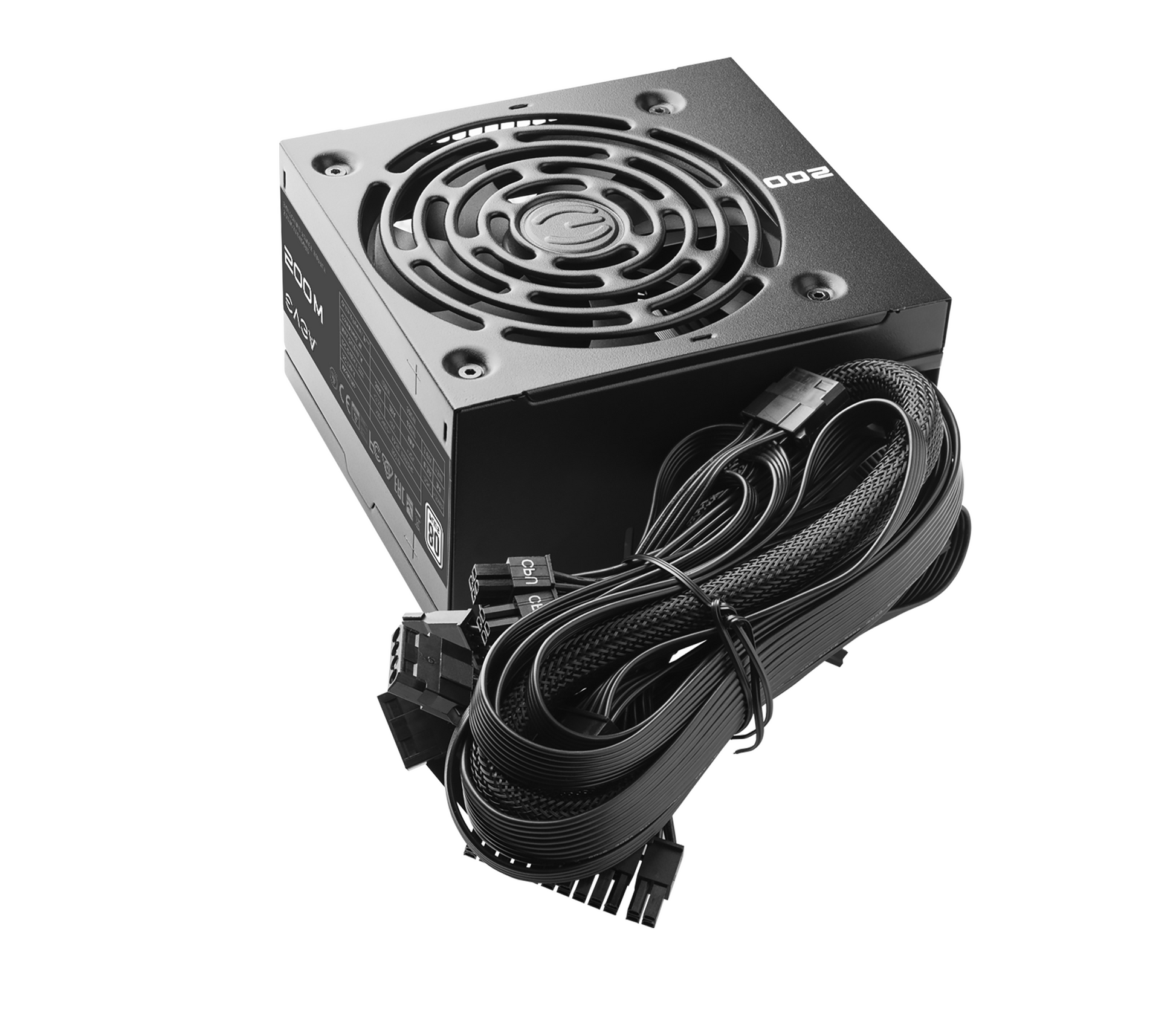

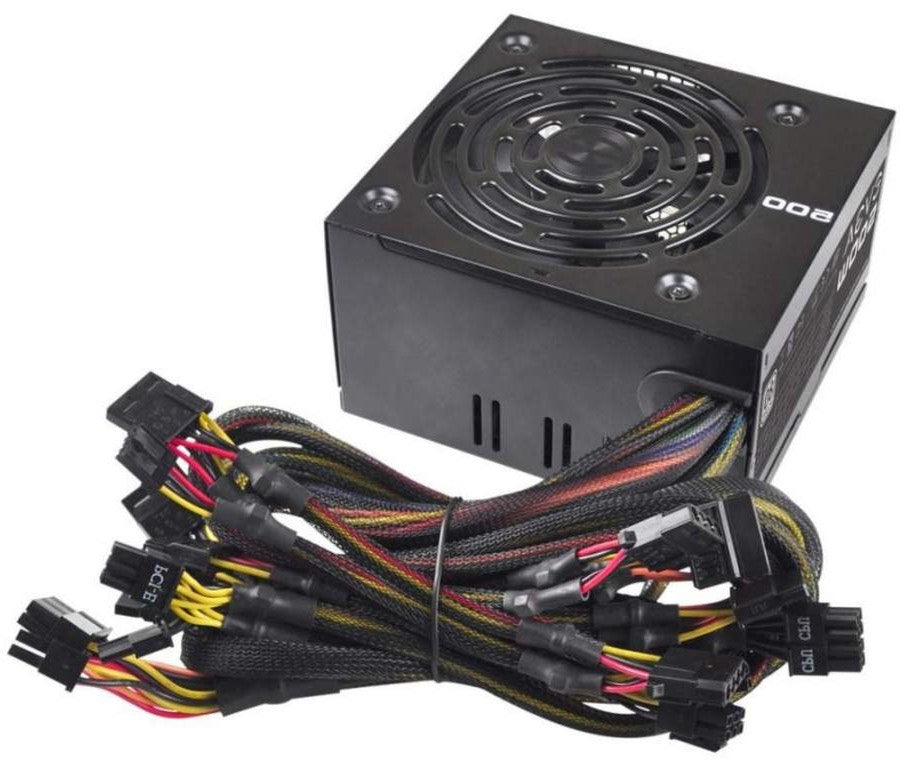

EVGA - 100-W1-0500-KR 500W Power Supply

EVGA 500W 80 PLUS Certified ATX12V/EPS12V Power Supply (Model: 100-W1-0500-KR)

Key Features:

• Maximum Power Output: 500W
• Certifications: 80 PLUS certified for efficient power delivery
• Protections: Built-in heavy-duty safeguards including:
• Over Voltage Protection (OVP)
• Under Voltage Protection (UVP)
• Over Current Protection (OCP)
• Over Power Protection (OPP)
• Short Circuit Protection (SCP)
• Over Temperature Protection (OTP)
• Active Power Factor Correction (PFC): Improves power efficiency and stability
• Cooling: Equipped with a quiet and intelligent 120mm auto fan for near-silent operation

Product Overview: The EVGA 500W 80 PLUS Certified Power Supply offers solid performance for budget-conscious builds. Supporting up to 40A on a single +12V rail, it provides reliable power for a range of components without compromising performance. Its compact design, fully sleeved cables, and integrated power switch make installation easy, even in smaller cases. Whether you're assembling a basic system or upgrading existing hardware, this power supply delivers the connections and stability needed. It also comes with a 3-year warranty for added peace of mind.

Specifications:

• Input Voltage: 100-240V AC | 8A | 50/60Hz
• Efficiency: 80% typical
• Operating Temperature: 0°C to 50°C
• MTBF (Mean Time Between Failures): 100,000 hours
• Fan Size: 120mm
• Output Ratings:
• +3.3V @ 24A, +5V @ 20A, +12V @ 40A
• +5VSB @ 3A, -12V @ 0.3A

Connectors:

• 1x 24-Pin ATX Main Power
• 1x 8-Pin EPS12V Power
• 2x 6+2-Pin PCI-Express
• 6x SATA Connectors
• 3x 4-Pin Molex Connectors
• 1x Floppy Connector
• Physical Specifications:
• Dimensions: 5.9 x 5.5 x 3.4 inches (150 x 140 x 85 mm)
• Weight: 4 lbs (1.81 kg)
